Product name: MTF series high precision push-pull force meter MT
Category: ALGOL Product model: MTF-10N
Characterfistfics

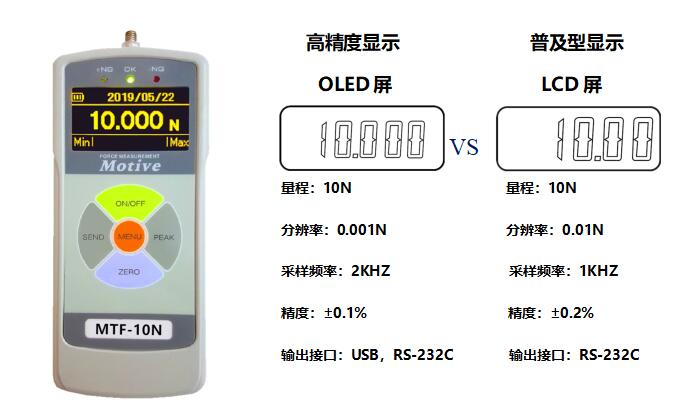

◆ OLED highlights the screen, full-angle display, and rich screen display information.Force; length; date; memory data; positive and negative peaks; progress bar, etc.
◆ The effective sampling frequency is up to 2KHZ, which can be extended to 15KHZ and ultra-high resolution 0.0001N.
◆ Multiple mechanical measurement units
(N Mn KN kgf gf lbf, etc.)
◆ Provide positive and negative peak detection
◆ Memory 1000 data;
Data can be sent to the computer while the instrument is remembering.
◆ USB, RS-232C connected to the computer
◆ External sensor
Structure size
Specificatfion
Model | Capacity | Indication | Resolution |
MTF-2N | 2N(200gf) | 2.0000N(200.00gf) | 0.0002N(0.002gf) |
MTF-5N | 5N(500gf) | 5.0000N(500.00gf) | 0.0005N(0.005gf) |
MTF-10N | 10N(1kgf) | 10.000N(1.0000kgf) | 0.001N(0.0001kgf) |
MTF-20N | 20N(2kgf) | 20.000N(2.0000kgf) | 0.002N(0.0002kgf) |
MTF-50N | 50N(5kgf) | 50.000N(5.0000kgf) | 0.005N(0.0005kgf) |
MTF-100N | 100N(10kgf) | 100.00N(10.000kgf) | 0. 01N(0.001kgf) |
MTF-200N | 200N(20kgf) | 200.00N(20.000kgf) | 0. 02N(0.002kgf) |
MTF-500N | 500N(50kgf) | 500.00N(50.000kgf) | 0. 05N(0.005kgf) |
MTF-1000N | 1000N(100kgf) | 1000.0N(100.00kgf) | 0.1N(0. 01kgf) |
